Cub Cadet Specialties

Electric Lift Parts

(Today is: )







Click the Parts Lookup Button BELOW to make sure you have the right PART NUMBER.

Click the Thumbnail to View Large Image

SHIPPING $10.00 PER ORDER to the lower 48 States.
International and Canadian orders Email for shipping cost before ordering.

OEM Electric Lift Motor P/N IH-530861-R1 Use IH-547325-R2

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$322.00

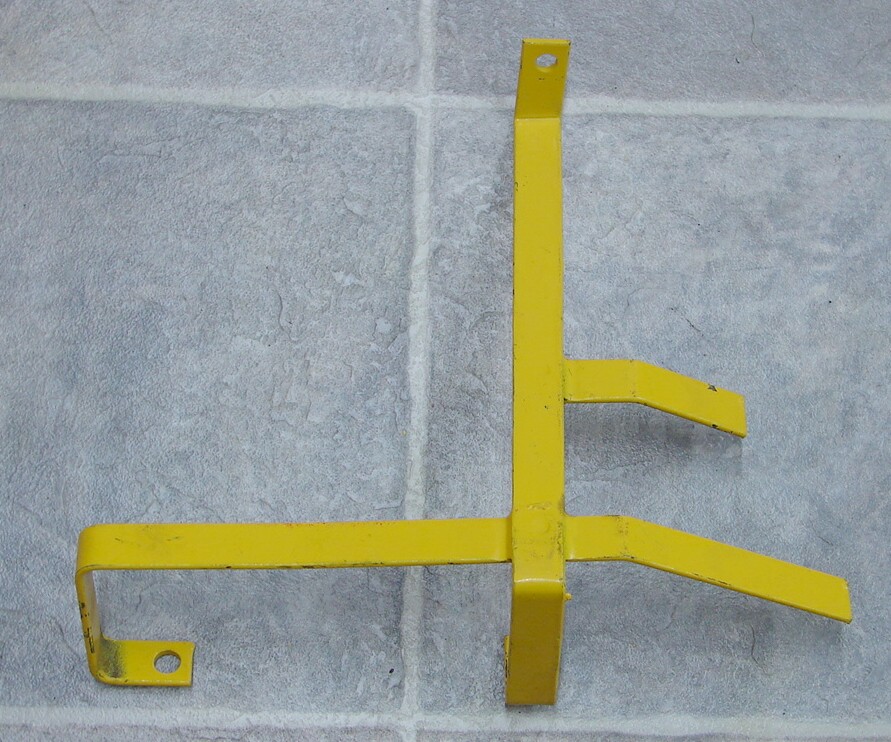

New Old Stock Narrow Frame electric lift foot guard assembly P/N IH-529944-R1

Fits electric lift actuators on narrow frame tractors

$48.00

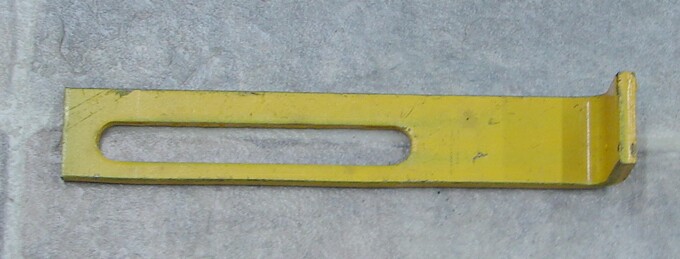

New Old Stock Narrow Frame electric lift arm stop P/N IH-5230418-R1

Fits electric lift actuators on narrow frame tractors

$22.00

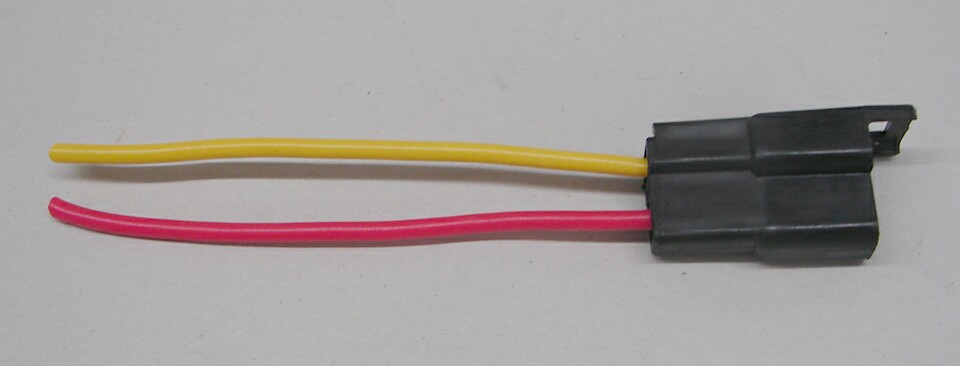

New electric Motor connector pig tail

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$12.00

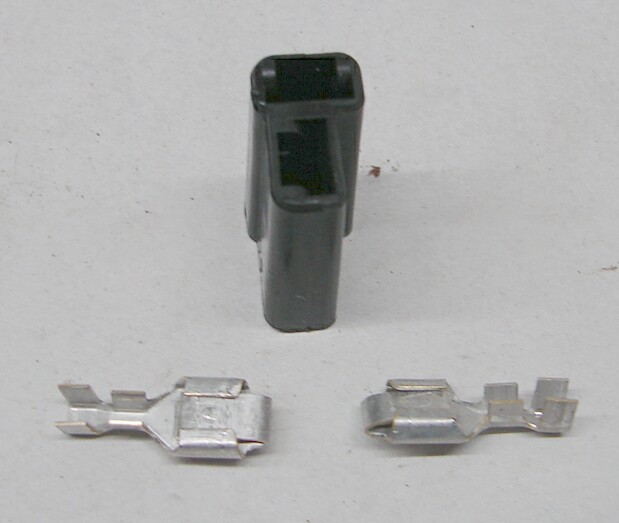

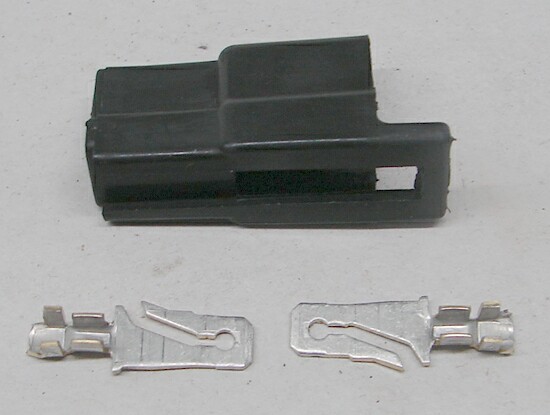

New electric Motor wire connector end

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$6.00

New electric lift wire harness connector end

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$6.00

NOS New Motor housing P/N IH-530791-R1 2374-2

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$80.00

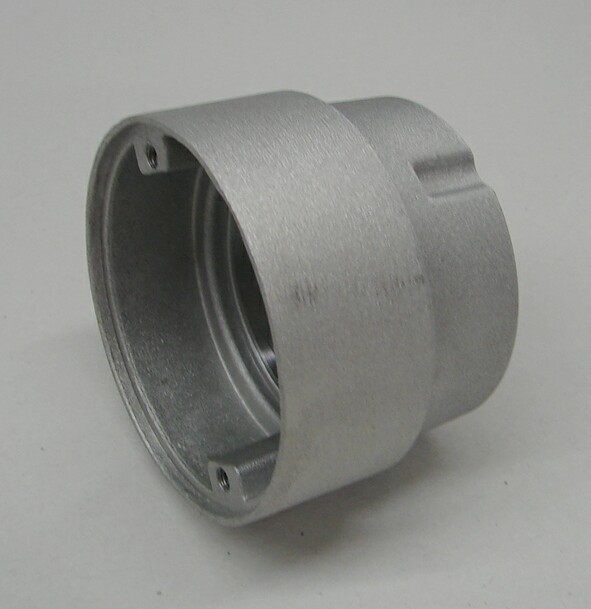

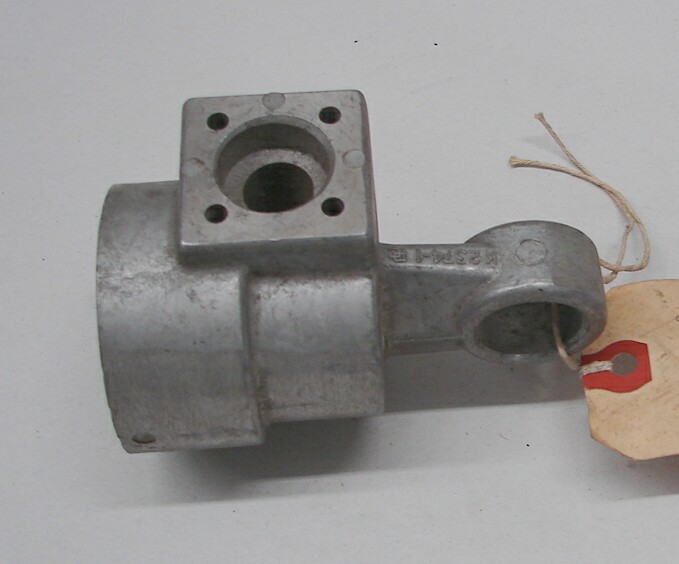

NOS Lift mounting housing P/N IH-530790-R1

Fits electric lift actuators on 106, 107, 126, 127, 147

$110.00

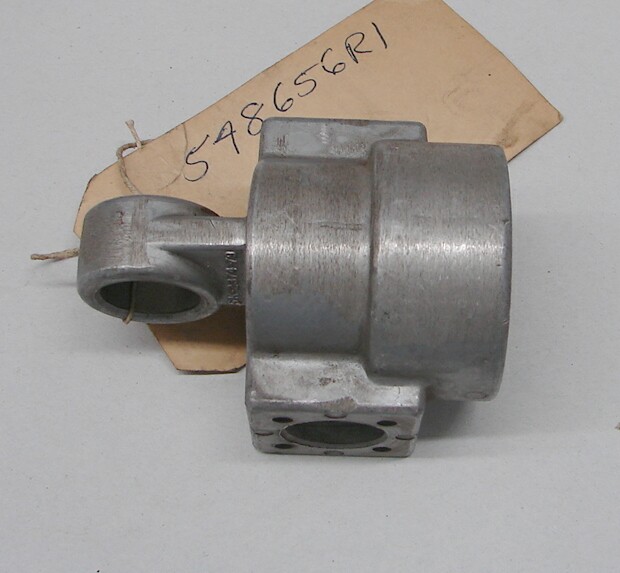

NOS Lift mounting housing P/N IH-548656-R1

Fits electric lift actuators on 86, 108, 109, 128, 129, 800, 1000, 1200, 1250

$120.00

Gear for Electric Lift equipped Tractors P/N IH-530793-R1 OEM New Gear for Electric Lift equipped Tractors P/N IH-530793-R1 0002374-4

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$108.00

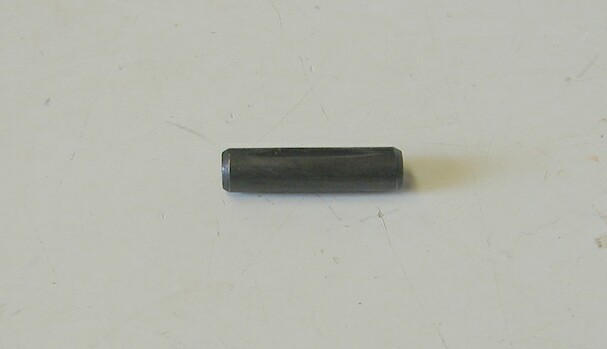

Gear Pin PN/ H5167

$3.00

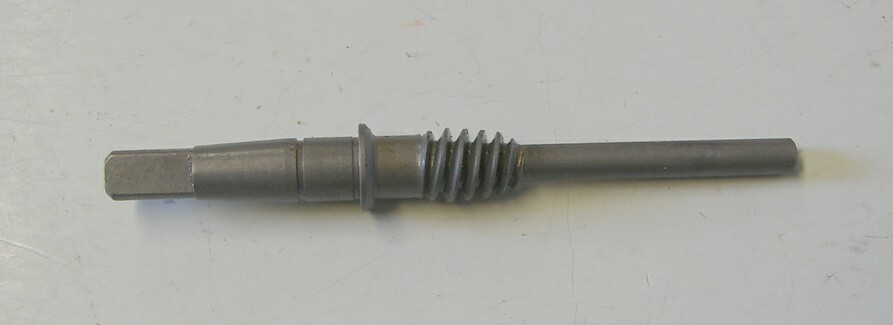

Pinion W/Worm Drive Gear PN/ IH-530857-R1 IH-530857-R2 0002374-3

 $98.00

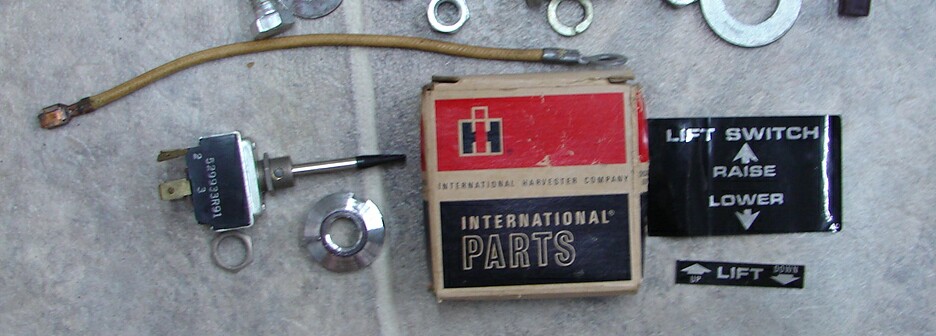

OEM Electric Lift Dash Switch PN/ IH-529933-R91

 $128.00

After market Electric Lift Dash Switch PN/ IH-529933-R91

 $48.00

Brake Springs for Electric Lift equipped Tractors Per Set PN/ IH-530798-R1 SK-2374-18

Not Available from MTD/CCC

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$16.00 Set

Drive Coupling & Pin for Electric Lift equipped Tractors PN/ IH-530860-R1 SK-2374-20

Not Available from MTD/CCC

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$34.00

Load Bearing  for Electric Lift equipped Tractors PN/ IH-533985-R91 Use ST553 0002374-6

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$23.00

Main Tube End Seal PN/ IH-530863-R91 Use SK-2374-16

Click here to view Parts Breakdown

$16.00

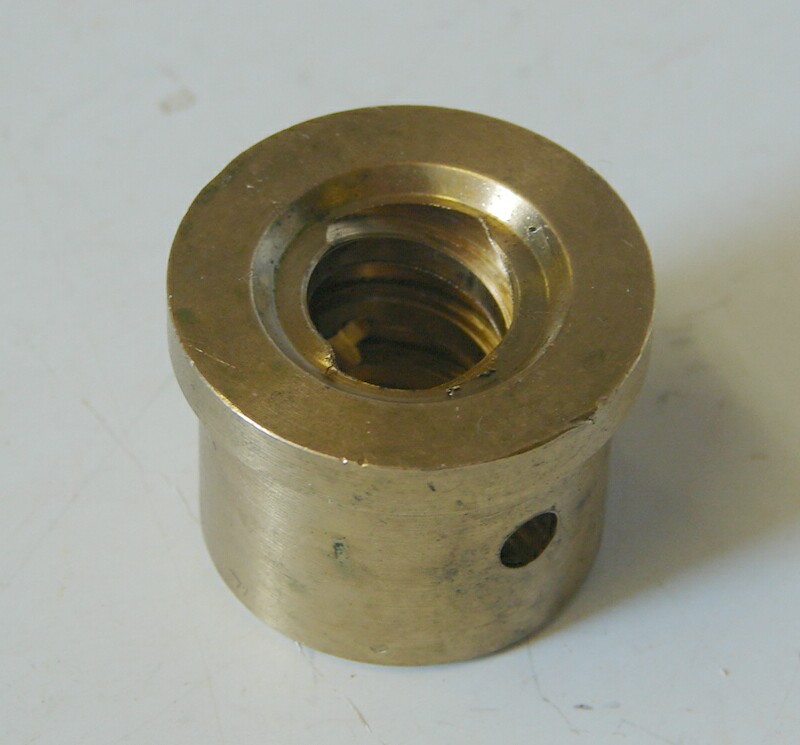

Lifting Nut PN/ IH-530797-R1 Use 0002374-13 $58.00

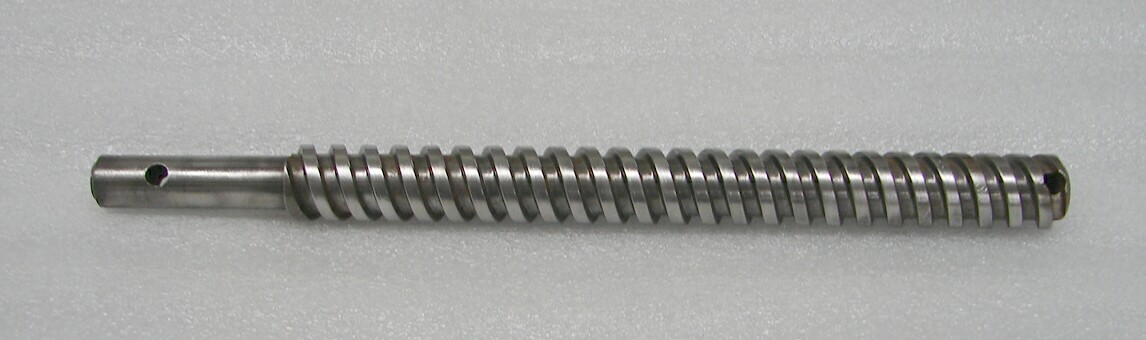

Worm drive screw PN/ IH-548657-R1 Use 0002374-12

Click here to view Parts Breakdown

$138.00

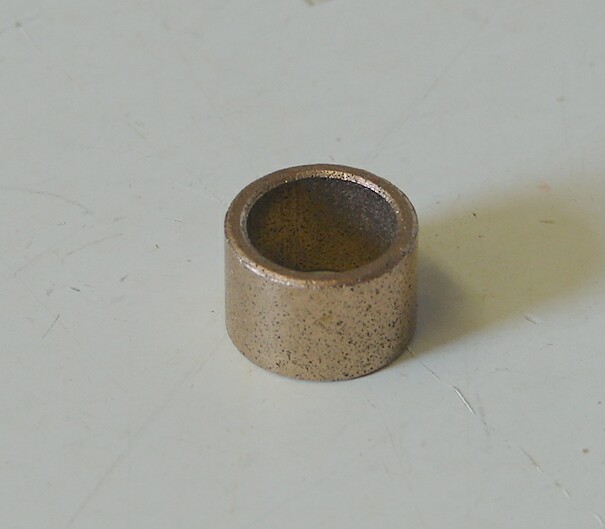

  Bushing  PN/ IH-530796-R1 Use 0002374-11

$8.00

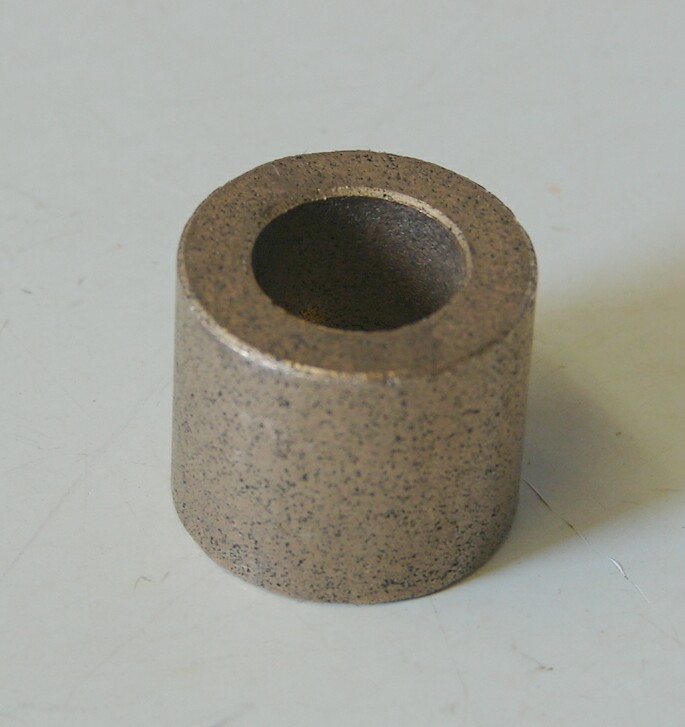

  Clevis Bushing  PN/ 0006405-4

Click here to view Parts Breakdown

$10.00

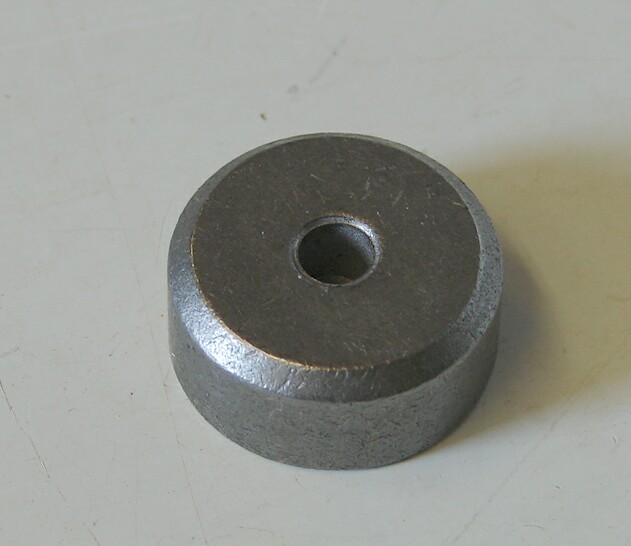

Bushing PN/ IH-530795-R1 0002374-10

Click here to view Parts Breakdown

$13.54

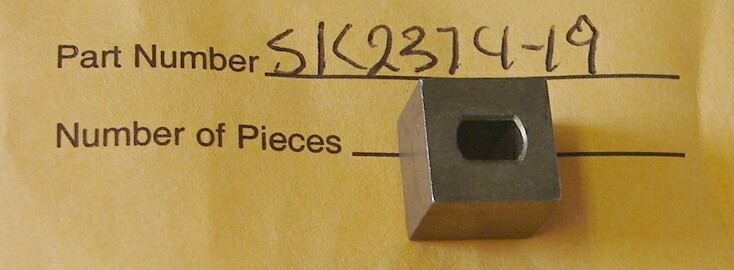

Cam Brake PN/ IH-530799-R1 Use 0002374-19 $9.00

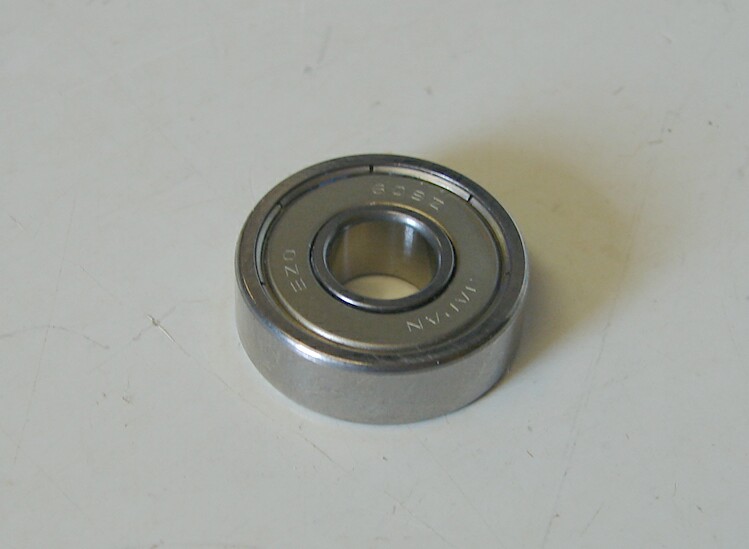

  Bearing PN/ IH- IH-533985-R91 Use 0002374-5

Click here to view Parts Breakdown

$18.00

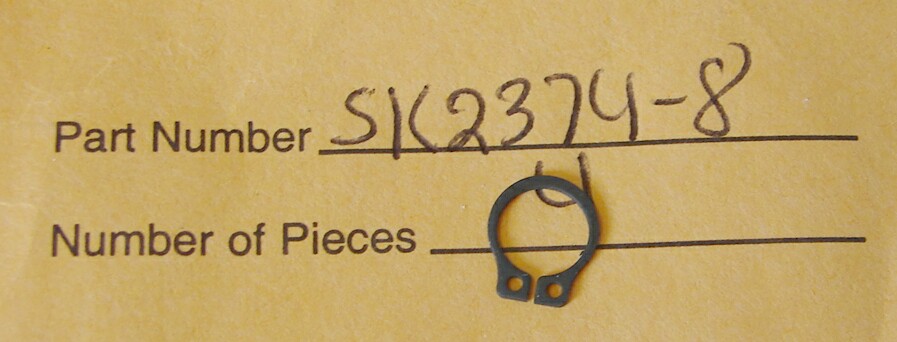

  Retaining Ring PN/ IH-138693-R1 use 0002374-8

$5.45

  Washer PN/ IH-530794-R1 use 0002374-9

Click here to view Parts Breakdown

$1.50

  Housing Screw PN/ 0002374-25

$1.00Ea.

  Guide Bushing PN/ 0002374-26

Click here to view Parts Breakdown

$5.00Ea.

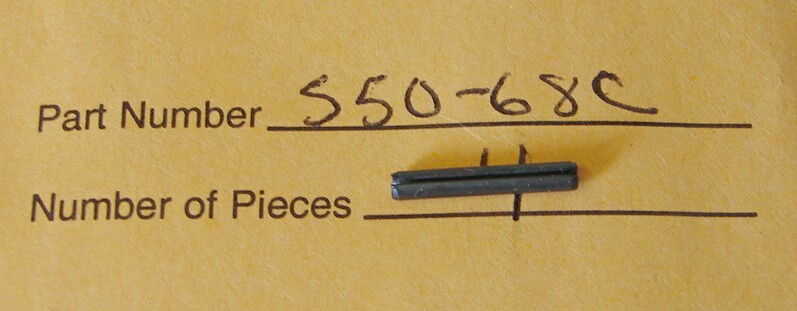

Coupling Pin PN/ S-50-68 $2.00

IH - CUB CADET Electric Lift Motor Brushes Set of 2

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$22.00

Rear electric lift harness PN/ 629-3012 USE 929-3012

Fits

002 30" Hydraulic Tiller 190-002-100
304 28" Rear Tiller 190-304-100
827 Sleeve Hitch 190-827-100

 $38.00

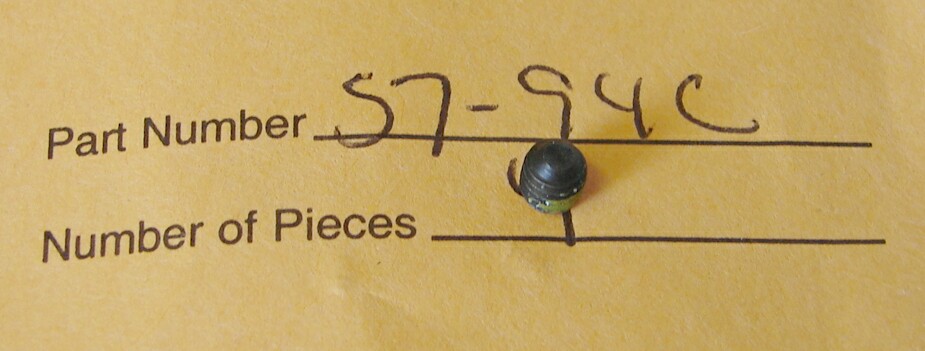

Set Screw PN/ 000794C

Click here to view Parts Breakdown

 $1.35

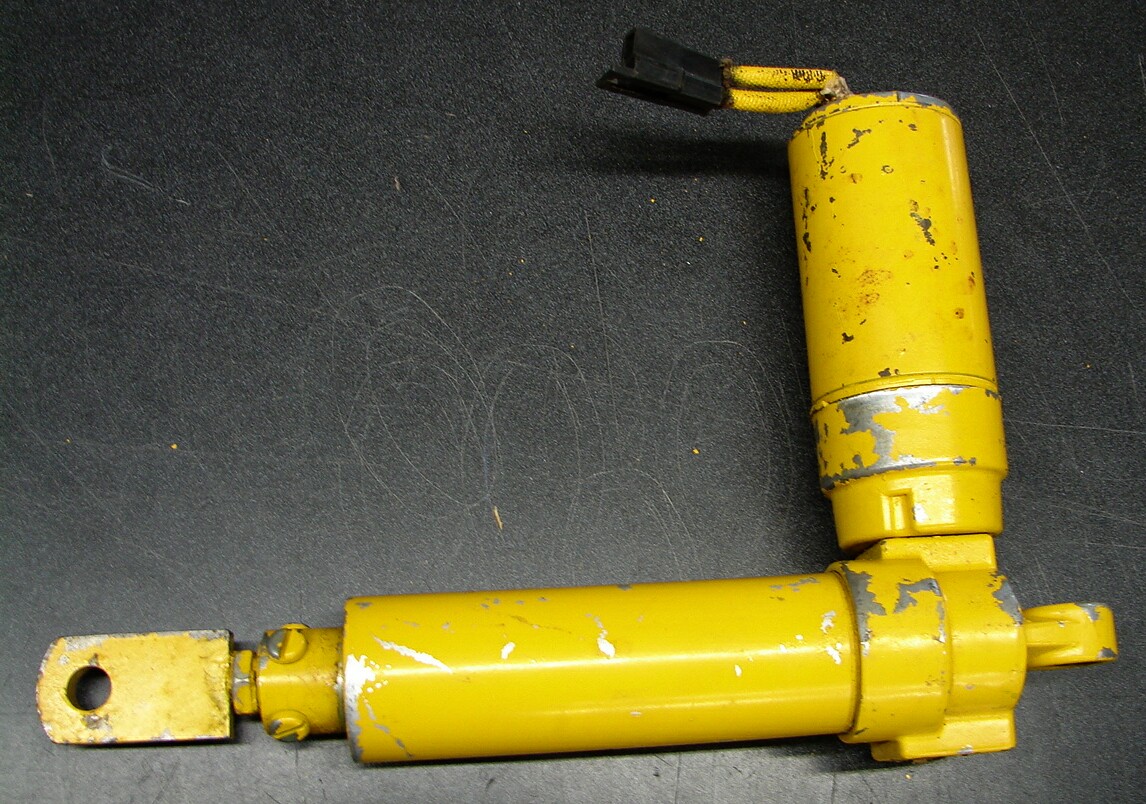

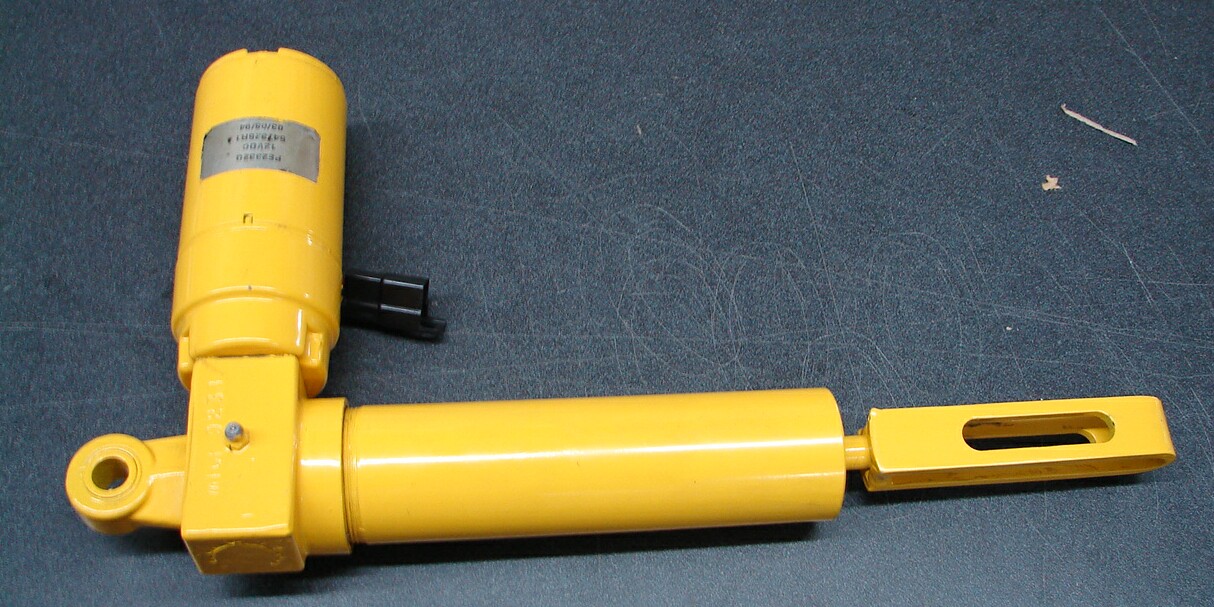

IH - Refurbished Electric Lift for WIDE Frame Cub Cadet tractors

Temporarily Out of Stock

PN/ IH-545623-R91

Gone through and checked out, worn parts replaced with new.

Cleaned, primed W/self etching primer and now less than 4 coats of Cub Cadet Paint

$0.00

IH - NEW OLD STOCK Electric Lift for NARROW Frame Cub Cadet tractors W/ Original Box

PN/ IH-529494-R94

$0.00

Refurbished Electric Lift for NARROW Frame Cub Cadet tractors PN/ IH-529494-R94 SOLD

More coming soon

Gone through and checked out, worn parts replaced with new, including end seal and internal bushing

Fits 106, 107, 126, 127, 147

$0.00

NEW OLD STOCK Electric Lift for WIDE Frame Cub Cadet tractors PN/ IH-545623-R91 SOLD OUT

Fits, 86, 108, 109, 128, 129, 800, 1000, 1200, 1250

$0.00

IH - NEW OLD STOCK Electric Lift for NARROW Frame Cub Cadet tractors W/ Original Box SOLD

PN/ IH-529494-R94

$0.00

New Old Stock Electric Lift Motor P/N IH-530861-R1 Use IH-547325-R2

Actually has the IH part number stamped into the body of the motor

Fits electric lift actuators on 86, 106, 107, 108, 109, 126, 127, 128, 129, 147, 800, 1000, 1200, 1250

$0.00

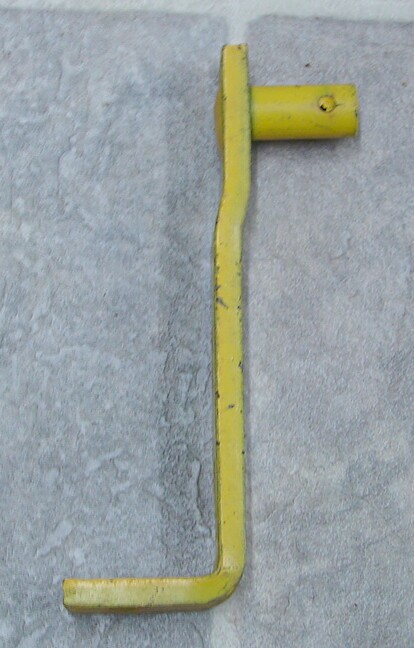

New Old Stock Narrow Frame electric lift mounting bracket assembly P/N IH-529938-R1 SOLD OUT

Fits electric lift actuators on narrow frame tractors

$0.00

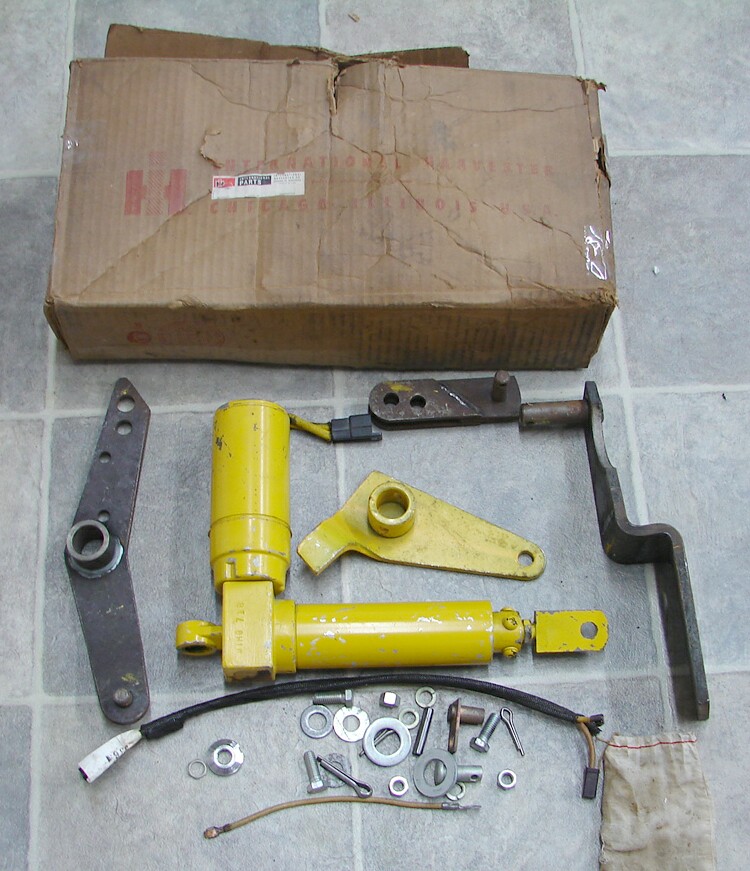

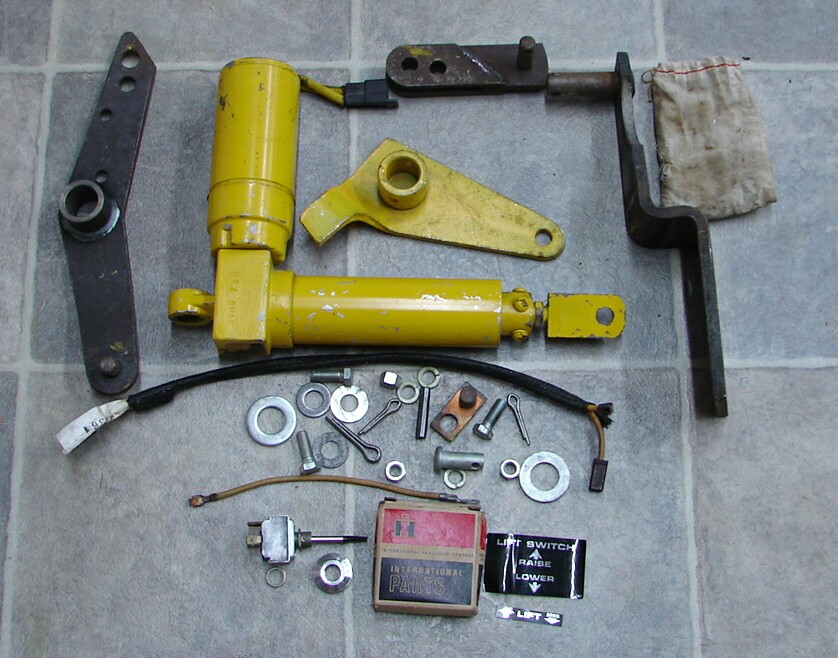

NEW OLD STOCK Electric Lift WIDE Frame Cub Cadet tractors PN/ IH 545614 R91 IH-545623-R91

Fits, 86, 108, 109, 128, 129, 800, 1000, 1200, 1250

$0.00

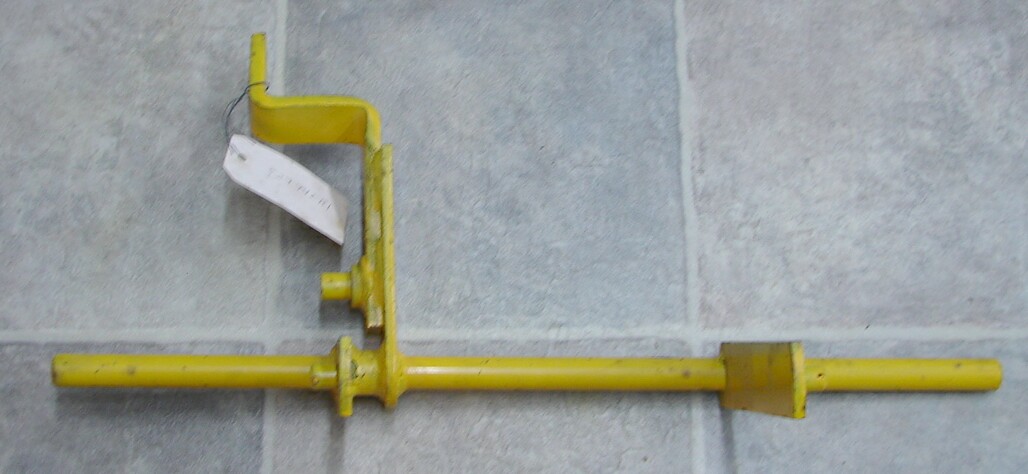

New Old Stock Narrow Frame electric lift rockshaft P/N IH-529942-R1

Fits electric lift actuators on narrow frame tractors

$0.00

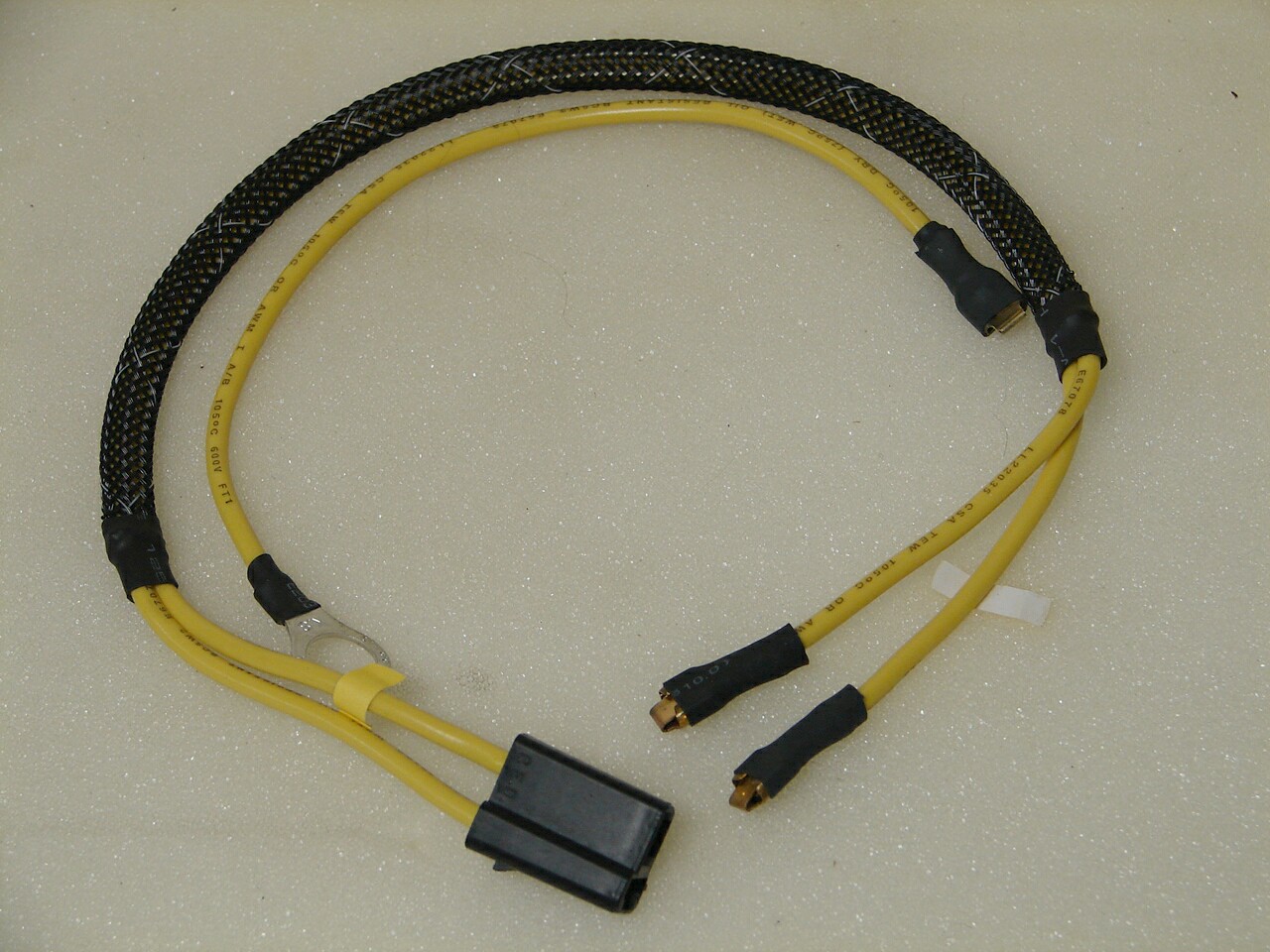

Electric Lift Wiring Harness W/ Ground wire

 $0.00

IH - Labor



$50.00
